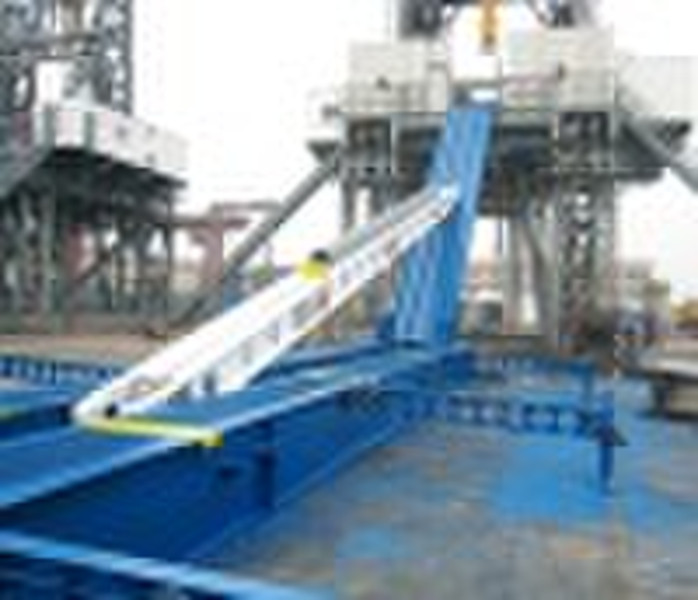

Drilling tool transporting device

Purpose and Scope of Application Drilling tool transporting device is mainly used to transport use in welldrilling operation with it's drilling pipe, drilling collar, drilling bit, casing pipe and other during slim members between fore field and drillingtable-board. In operation, pipe-like material is rolled into supportingarm V-type transportation groove. Slip shoe fixed inside supporting armbracket pushes work-pieces to move in rectilinear motion to well mouthin the V-type groove to support the drilling tool where the slip shoefunctions to pull as well stop the drilling tool. Then start the hydraulicwinch fixed on ramp back and the supporting arm will lift the drilling toolto near well mouth and then the drilling tool is to be lifted to well mouthby a lifting tool. Drilling pipe, drilling collar, drilling bit, casing pipe andother slim members taken down will be put into supporting arm V-typetransportation groove and thenthey will be pushes out of the supportingarm V-type transportation groove to fore field material bracket to finishdrilling tool transportation by adjustment supporting legs. Being simple in structure and convenient in operation, this kind ofdrilling tool transportation device can transport drilling tools to specifiedsite, thus regarded as one of the best choices of supporting device todrilling machine. Technical Parameter Gross power of electrical equipment 60KW Power source 380v/50Hz Parameter of main pump Rated Displacement 206L/min Rated pressure 35Mpa Motor power 55KW Cooling Model Solitary wind cooling Control model Controller+PLC+Sensor Maximun remote-control radius Over 100m Maxumum lifting workpiece mass 5000Kg Maxumum lifting workpiece length 14.5m Maxumum lifting workpiece diameter φ400mm External dimensions(in folded state) Length×Width×Height×[mm]=19000××3200×2700 Gross weight 25t [including hydraulic oil]
