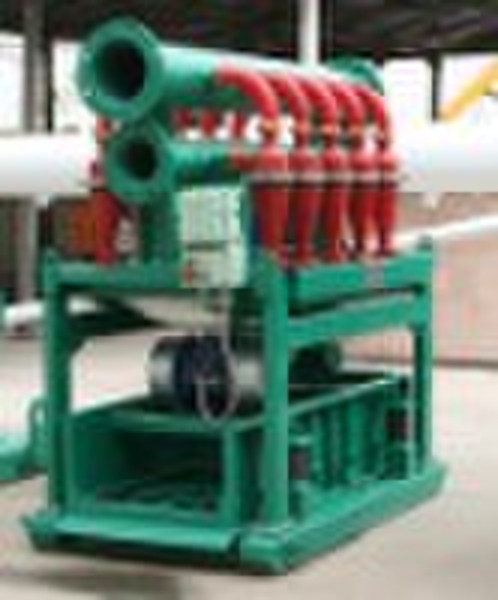

Drilling fluid cleaner with desilter

Desilter (CNQ100×10) is made up of ten sets of 4 (100mm) hydraulic swirlers, slurry outlet and inlet manifolds and bottom bars. In the whole solid control system, it is regarded as one of level 3 solid control devices. Swirler is made of wearable and antiseptic polyurethane material suitable for outdoor environment at the temperature of ±40. Apart from good separation performance, this kind of sand remover is compact in structure and stable in running. This swirler owns good interchangeability, has smaller weight and smaller volume, and is convenient to operate. Technical parameters 1. Swirler diameter φ100 2. Swirler number 10 3. Working pressure 0.250.4MPa 4. Treatment capacity200M3/h 5. Sand preparation pump power 5575KW 6. Weight 379kg 7. External dimensions 1986×1042×1618
